Ripple Tank Kit Manufacturer,Supplier and Exporter in Africa
Product Code : DA-VAW-11275

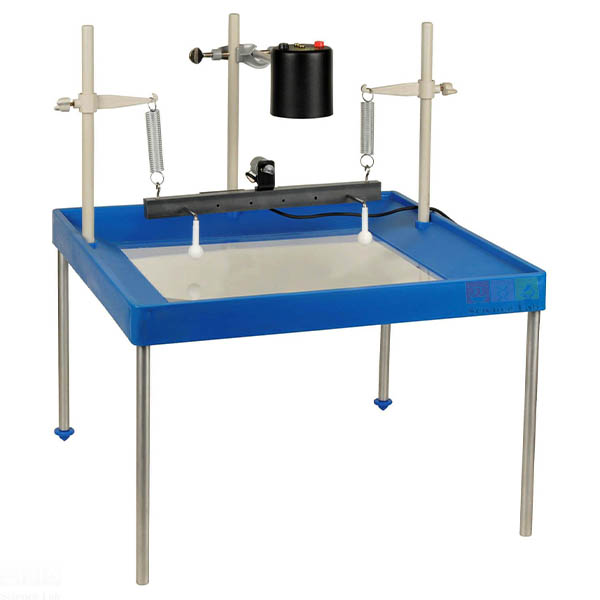

Quick Answer: The Ripple Tank Kit is an overhead projector type ripple tank for demonstrating reflection, refraction, diffraction and interference. It has a shallow 40 x 40 cm tank with a scratch-resistant acrylic window, supported on four adjustable legs.
Last updated: October 2026
Key Features
- Shallow 40 x 40 cm tank with scratch-resistant acrylic bottom window
- Four adjustable legs
- Eccentric motor and bar assembly for two point dippers or a plane-wave dipper
- Motor assembly suspended on springs so vibration is not transmitted to the tank
- Overhead point light source casts a shadow of the waves on the bench
- Motor needs a continuously variable 0-5 V DC supply; lamp needs 12 V AC
Technical Specifications
| Specification | Value |
|---|---|
| Tank size | 40 x 40 cm |
| Motor supply | Continuously variable 0-5 V DC |
| Lamp supply | 12 V AC |
| Legs | Four, adjustable |
| Dippers | Two point dippers or a plane-wave dipper |
About This Product
A bright point light source held above the tank shines down through the water and casts a shadow of the waves on the bench below. The waves are made by an eccentric motor and bar assembly held on two side arms and suspended by springs, which stops the vibration reaching the tank. The kit includes concave, convex and rectangular Perspex plates, a curved reflector, two large and one small barriers, two point dippers, a hand stroboscope, banana leads and instructions.
Frequently Asked Questions
Q1. What wave effects can the Ripple Tank Kit demonstrate?
It is designed for demonstrating wave phenomena including reflection, refraction, diffraction and interference.
Q2. What power supplies are needed?
The motor requires a continuously variable 0-5 V DC power supply and the lamp requires a 12 V AC supply.
Q3. What accessories are included?
Concave, convex and rectangular Perspex plates, a curved reflector, two large and one small barriers, two point dippers, a hand stroboscope, banana leads and instructions.
