Helmholtz Coils with support Manufacturer,Supplier and Exporter in Africa
Product Code : DA-M-11370

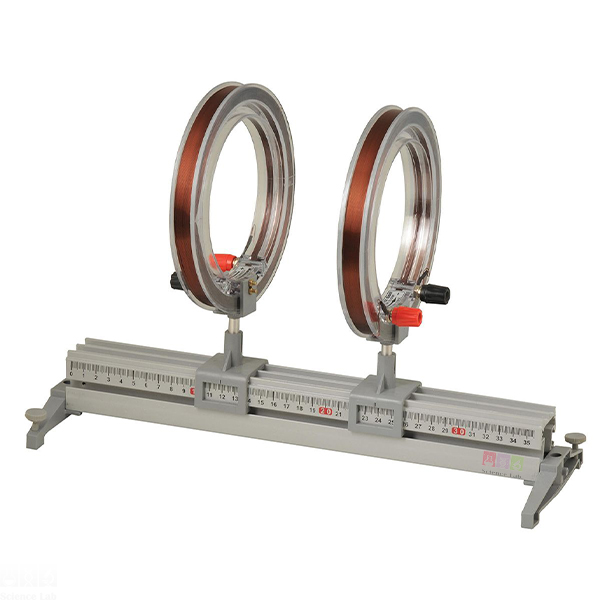

Quick Answer: The Helmholtz Coils with support are a pair of preformed coils, each with 400 turns of copper wire on a former of approx. 150 mm diameter. Each coil sits on a support rod that fits the sliders of the supplied track system.
Last updated: October 2026
Key Features
- Pair of preformed coils, 400 turns of copper wire each
- Former of approx. 150 mm diameter
- Support rods fit the sliders of the supplied track system
- Coil spacing adjustable while keeping a common axis
- Electrical connection via 4 mm sockets
- Current direction marked on each coil; max. current 1 A
Technical Specifications
| Specification | Value |
|---|---|
| Turns per coil | 400 |
| Coil diameter | Approx. 150 mm |
| Maximum current | 1 A |
| Connections | 4 mm sockets |
| Winding | Copper wire |
About This Product
Mounting each coil on a support rod that slides along the supplied track lets the distance between the coils be changed while they stay aligned on a common axis, for measuring and studying magnetic fields. The direction of current is marked on each coil. The current should not exceed 1 A, to prevent overheating or damage. The Helmholtz Coils with support can be exported to institutions in Luxembourg, Kuwait, Gambia, Turkey and Burkina Faso.
Frequently Asked Questions
Q1. What is the maximum current for the Helmholtz Coils with support?
The current should not exceed 1 A, to prevent overheating or damage.
Q2. Can the spacing between the coils be changed?
Yes. Each coil is on a support rod fitted to the sliders of the supplied track system, so the distance can be varied while the coils stay aligned on a common axis.
Q3. How many turns does each coil have?
Each coil has 400 turns of copper wire on a former of approx. 150 mm diameter.
Related: Magnetism range, Circular Coil, Search Coil, AC Magnetic Field Coil.
For a quotation on the Helmholtz Coils with support, contact Didactic Africa.
