Demonstration Dynamo DC Manufacturer,Supplier and Exporter in Africa
Product Code : DA-E-11395

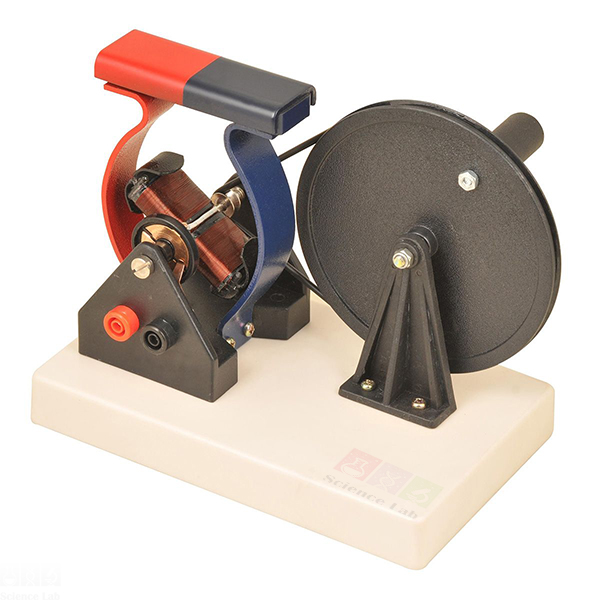

Quick Answer: The Demonstration Dynamo DC is an open-design model in which a two-coil armature is turned by a hand-cranked drive wheel inside the field of a permanent U-magnet.
Last updated: October 2026
Key Features
- Armature of two copper wire coils on a horizontal axis
- Hand-cranked drive wheel, 140 mm diameter
- Permanent U-magnet supplied
- Open, exposed design
- Plastic base with LED and two 4 mm sockets
- Base dimensions (W x L): 150 x 200 mm
Technical Specifications
| Specification | Value |
|---|---|
| Base dimensions (W x L) | 150 x 200 mm |
| Drive wheel diameter | 140 mm |
| Connections | Two 4 mm sockets |
| Armature | Two coils of copper wire |
| Magnet | Permanent U-magnet (supplied) |
About This Product
Turning the hand-cranked drive wheel rotates the armature about a horizontal axis within the magnetic field of the supplied U-magnet. The open, exposed design makes it easy to follow how a dynamo works. The plastic base carries an LED and two 4 mm sockets for connection to measuring instruments.
Frequently Asked Questions
Q1. Is the magnet included with the Demonstration Dynamo DC?
Yes. The permanent U-magnet that creates the magnetic field is supplied with the unit.
Q2. Can it be connected to measuring instruments?
Yes. Two 4 mm sockets on the base allow connection to measuring instruments.
Q3. How large is it?
The base measures 150 x 200 mm (W x L) and the drive wheel is 140 mm in diameter.
Related: Electromagnetism range, Demonstration Dynamo AC/DC, Dynamo.
For a quotation on the Demonstration Dynamo DC, contact Didactic Africa.
