Helmholtz Coils Manufacturer,Supplier and Exporter in Africa
Product Code : DA-AAN-11401

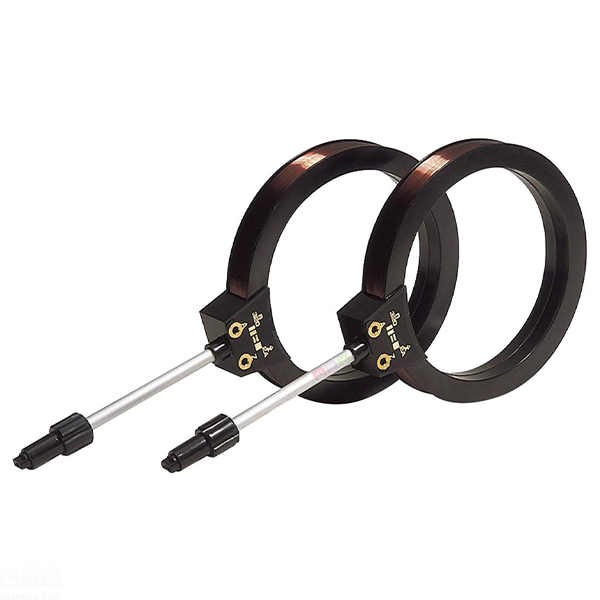

Quick Answer: The Helmholtz Coils are a pair of 136 mm coils in a plastic casing on an insulated stand rod, used to generate a homogeneous magnetic field. They mount in the universal stand for demonstration experiments with the tube programme.
Last updated: October 2026
Key Features
- Two coils in a plastic casing
- 320 turns, DC resistance approx. 6.5 ohms
- Load rating 1.5 A
- Two 4 mm jacks per coil
- Insulated stand rod, 145 x 8 mm
Technical Specifications
| Specification | Value |
|---|---|
| Number of turns | 320 |
| DC resistance | approx. 6.5 ohms |
| Load rating | 1.5 A |
| Coil diameter | 136 mm |
| Connections | Two 4 mm jacks per coil |
| Stand rod (L x Dia.) | 145 x 8 mm |
About This Product
Mounted in the universal stand alongside the demonstration tubes, the coils provide a homogeneous magnetic field for demonstration experiments. Each coil connects through two 4 mm jacks, and the pair is rated for a load of 1.5 A.
Frequently Asked Questions
Q1. How are the Helmholtz Coils mounted?
They sit on an insulated stand rod and mount in the universal stand, working with the tube programme for demonstration experiments.
Q2. What is the current rating?
The load rating is 1.5 A, and the DC resistance is approx. 6.5 ohms.
Related: Atoms and Nuclei range, Universal Stand, Deflection E-M Tube, Helmholtz Coils for Use with Fine Beam Tube.
For a quotation on the Helmholtz Coils, contact Didactic Africa.
